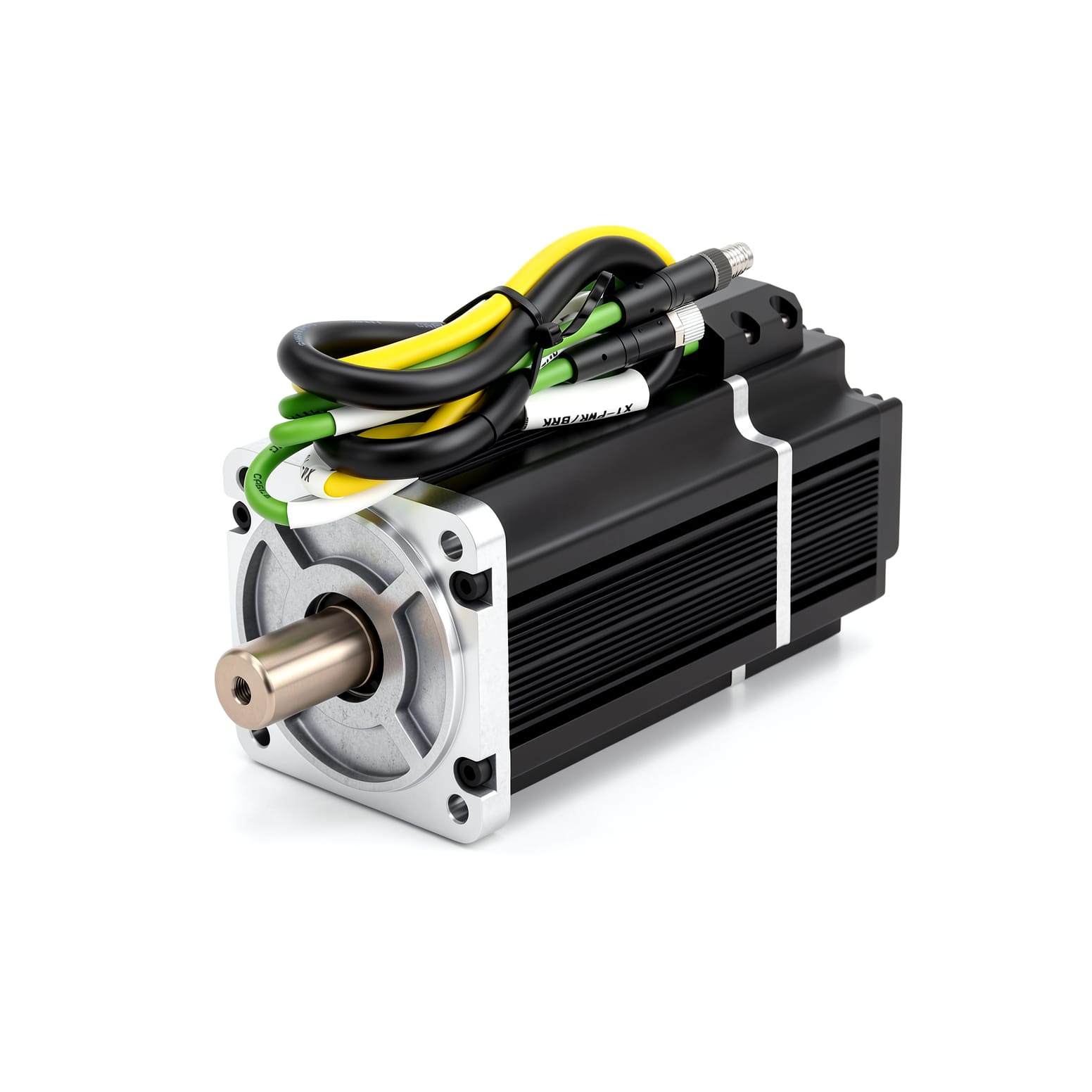

PMM80 Integrated DC Servo Motor

80mm flange integrated servo motor – integrates drive, control, and I/O, redefining traditional servo systems. Simplifies wiring, saves space, and delivers smarter integrated solutions for a wide range of compact automation equipment.

Features

630W / 750W
EtherCAT / CANopen / RS485
Built-in brake models available
1500 / 3000 rpm

Pulse EtherCAT RS485 CANopen 80mm

Models & Specifications

Specs as rows · Models as columns

Specifications	PMMB8063B-CANopen-0HE	PMMB8063B-485-0HE	PMMB8063B-COE-0HE	PMMB8063B-CANopen-0HE0HEB	PMMB8063B-485-0HEB	PMMB8063B-COE-0HEB	PMMB8063B-CANopen-0HE-LP	PMMB8063B-485-0HE-LP	PMMB8063B-COE-0HE-LP	PMMB8063B-CANopen-0HEB-LP	PMMB8063B-485-0HEB-LP	PMMB8063B-COE-0HEB-LP	PMM8075B-CANopen-0HE	PMM8075B-485-0HE	PMM8075B-COE-0HE	PMM8075B-CANopen-0HEB	PMM8075B-485-0HEB	PMM8075B-COE-0HEB	PMM8075B-CANopen-0HE-LP	PMM8075B-485-0HE-LP	PMM8075B-COE-0HE-LP	PMM8075B-CANopen-0HEB-LP	PMM8075B-485-0HEB-LP	PMM8075B-COE-0HEB-LP
Flange Size	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm	80mm
Brake	No Brake	No Brake	No Brake	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	No Brake	No Brake	No Brake	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	No Brake	No Brake	No Brake	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	No Brake	No Brake	No Brake	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)	Integrated Brake (Ext. Interface)
Encoder type	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder	2500-line single-turn absolute magnetic encoder
Rated Speed	1500 rpm	1500 rpm	1500 rpm	1500 rpm	1500 rpm	1500 rpm	1500 rpm	1500 rpm	1500 rpm	1500 rpm	1500 rpm	1500 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Rated Power	630 W	630 W	630 W	630 W	630 W	630 W	630 W	630 W	630 W	630 W	630 W	630 W	750 W	750 W	750 W	750 W	750 W	750 W	750 W	750 W	750 W	750 W	750 W	750 W
Rated Voltage	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC	48 VDC
Inertia	1.07×10^-4 kg·m²	1.07×10^-4 kg·m²	1.07×10^-4 kg·m²	1.14×10^-4 kg·m²	1.14×10^-4 kg·m²	1.14×10^-4 kg·m²	1.07×10^-4 kg·m²	1.07×10^-4 kg·m²	1.07×10^-4 kg·m²	1.14×10^-4 kg·m²	1.14×10^-4 kg·m²	1.14×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²	1.2×10^-4 kg·m²
Voltage Range	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52	16-52
Protection Level	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54
STO Function	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Body Length	140 mm	140 mm	140 mm	140 mm	140 mm	140 mm	140 mm	140 mm	140 mm	175 mm	175 mm	175 mm	157.5 mm	157.5 mm	157.5 mm	198.5 mm	198.5 mm	198.5 mm	157.5 mm	157.5 mm	157.5 mm	198.5 mm	198.5 mm	198.5 mm
Weight	2.9 kg	2.9 kg	2.9 kg	3.6 kg	3.6 kg	3.6 kg	2.9 kg	2.9 kg	2.9 kg	3.6 kg	3.6 kg	3.6 kg	2.9 kg	2.9 kg	2.9 kg	3.6 kg	3.6 kg	3.6 kg	2.9 kg	2.9 kg	2.9 kg	3.6 kg	3.6 kg	3.6 kg
Rated Current	19.4 A	19.4 A	19.4 A	19.4 A	19.4 A	19.4 A	19.4 A	19.4 A	19.4 A	19.4 A	19.4 A	19.4 A	18 A	18 A	18 A	18 A	18 A	18 A	18 A	18 A	18 A	18 A	18 A	18 A

* Scroll horizontally within the table area when the content is wide.

Specifications

Shaft Diameter	Φ19
Drive Mode	Adopting FOC field-oriented control technology and SVPWM
Encoder	2500-line single-turn absolute magnetic encoder
CiA402 Mode	PP, VM, PV, PT, HM, IP, CSP, CSV, CST
NiMotion mode	Position mode: Pulse control, multi-segment position control, digital input control Speed mode: Multi-segment speed control, digital input control Torque mode: Digital input control
Control Modes	CiA402 Mode,Manufacturer Mode
External Control Interface	DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input
DI (Digital Input)	Quantity: 3, not isolated. Pull up by setting the object 2003h:15h configuration. At high levels, it is 3 to 30V; at low levels, it is 0 to 0.5V. Configurable functions: 1. 1. Used as a switch. 2. Used as a pulse input channel
DO (Digital Output)	Configured via DX
DX (Digital Input / Output)	Quantity: 1; Configure as DO; Maximum load current: 8mA Configurable functions: 1. Regular DO port; 2. The motor stops running; 3. Goal achievement; 4. Alarm output (When the motor status meets the above conditions, the DO switch quantity status changes)
AI (Analog Input)	Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0~10V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction.
Operating Temperature	0°C to 40°C
Operating Altitude	<1000m
Fault Alarm	Overvoltage, undervoltage, overtemperature, locked rotor, overload, overspeed
Servo Function	Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade
