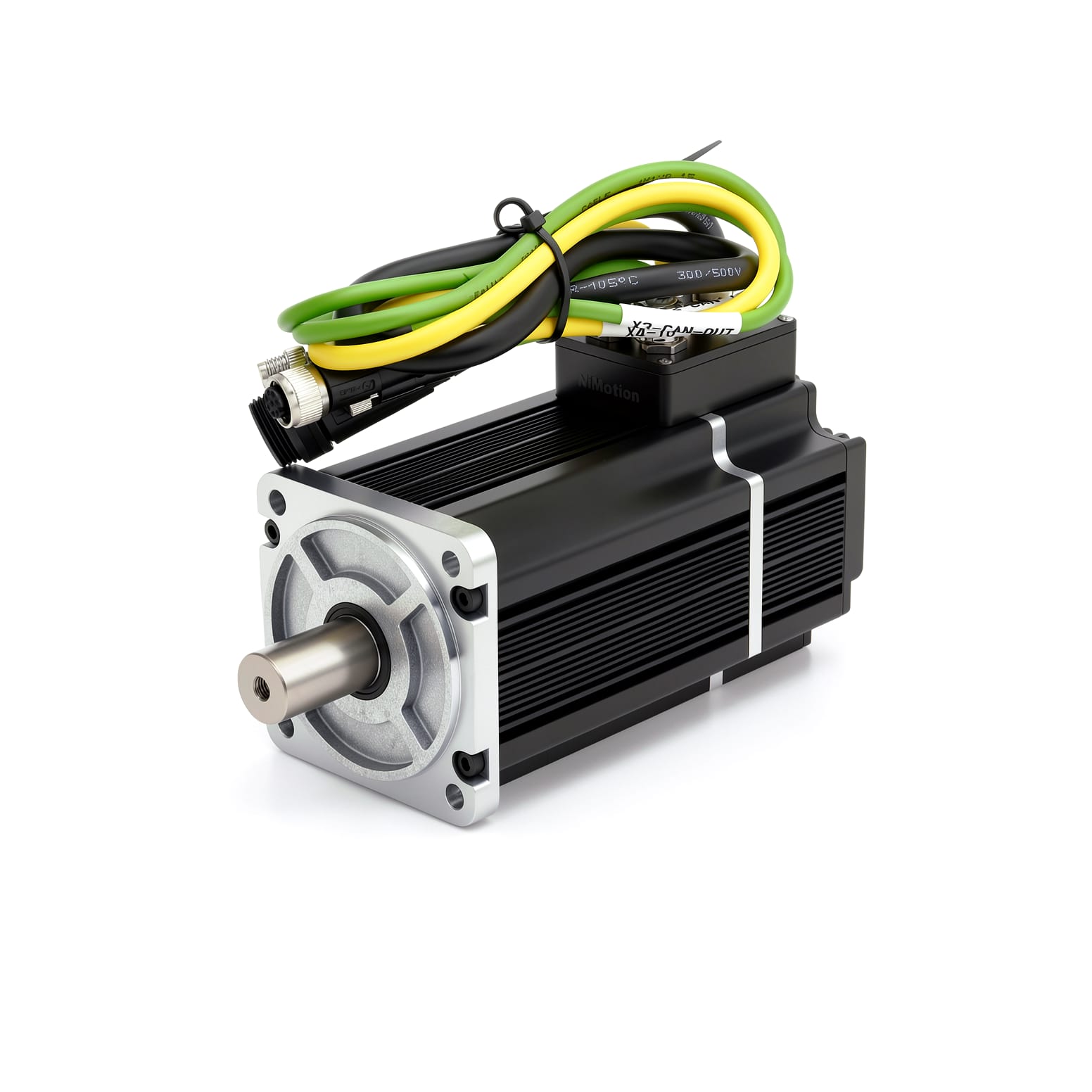

PMMP80 Integrated Protection DC Servo Motor
IP65-rated 80mm flange integrated servo motor – integrates drive, control, and I/O, redefining traditional servo systems. Simplifies wiring, saves space, and delivers smarter integrated solutions for a wide range of compact automation equipment.
Features
- IP65 protection rating
- 750W high power
- EtherCAT / CANopen / RS485
Models & Specifications
| Specifications | PMMP8075B-485-0HE | PMMP8075B-COE-0HE | PMMP8075B-CANopen-0HE |
|---|---|---|---|
| Flange Size | 80mm | 80mm | 80mm |
| Brake | No Brake | No Brake | No Brake |
| Encoder type | 2500-line single-turn absolute magnetic encoder | 2500-line single-turn absolute magnetic encoder | 2500-line single-turn absolute magnetic encoder |
| Rated Speed | 3000 rpm | 3000 rpm | 3000 rpm |
| Rated Power | 750 W | 750 W | 750 W |
| Rated Voltage | 48 VDC | 48 VDC | 48 VDC |
| Inertia | 1.2×10^-4 kg·m² | 1.2×10^-4 kg·m² | 1.2×10^-4 kg·m² |
| Voltage Range | 16-52 | 16-52 | 16-52 |
| Protection Level | IP65 | IP65 | IP65 |
| STO Function | No | No | No |
| Body Length | 157.5 mm | 157.5 mm | 157.5 mm |
| Weight | 2.9 kg | 2.9 kg | 2.9 kg |
| Rated Current | 18 A | 18 A | 18 A |
* Scroll horizontally within the table area when the content is wide.
Specifications
| Shaft Diameter | Φ19 |
| Drive Mode | Adopting FOC magnetic field orientation control technology and SVPWM |
| Encoder | 2500-line single-turn absolute magnetic encoder |
| CiA402 Mode | PP, VM, PV, PT, HM, IP, CSP, CSV, CST |
| NiMotion mode | Position mode, speed mode, torque mode |
| Control Modes | CiA402 Mode,Manufacturer Mode |
| External Control Interface | DI – Non-isolated NPN Input,DI – Non-isolated PNP Input,DI – Non-isolated Switch Input,DI – Isolated Opto Single-Ended Input,DI – Isolated Opto Differential Input,DO – Isolated Open-Drain Output,DO – Non-isolated MOSFET Output,AI – 0–10V Analog Input |
| DI (Digital Input) | Quantity: 3, not isolated. Pull-up enabled by configuring the object at address 2003h:15h. At high levels, the voltage ranges from 3 to 30 V; at low levels, it ranges from 0 to 0.5 V. Configurable functions: 1. Used as a switch. 2. Used as a pulse input channel. |
| DO (Digital Output) | Configured via DX |
| DX (Digital Input / Output) | Quantity: 1; Configurable as DI or DO. When configured as DO: Maximum load current: 8mA. Configurable functions: 1. General DO port; 2. Motor run/stop; 3. Target reached; 4. Alarm output (when the motor status meets the above conditions, the DO switching state changes). |
| AI (Analog Input) | Quantity: 1; Input method: single-ended input; Signal type: voltage signal; Resolution: 12-bit; Voltage: 0–10 V; Accuracy: reference error ≤1%; Configurable functions: dead zone, filtering, offset, scaling, direction. |
| Operating Temperature | 0°C to 40°C |
| Operating Altitude | <1000m |
| Fault Alarm | Overvoltage, undervoltage, overtemperature, locked rotor, overload, overspeed |
| Servo Function | Soft limit, gain switching, S-curve planning, vibration suppression, parameter identification, online upgrade |
